K.SPB 3 / 0N - 15 / 27

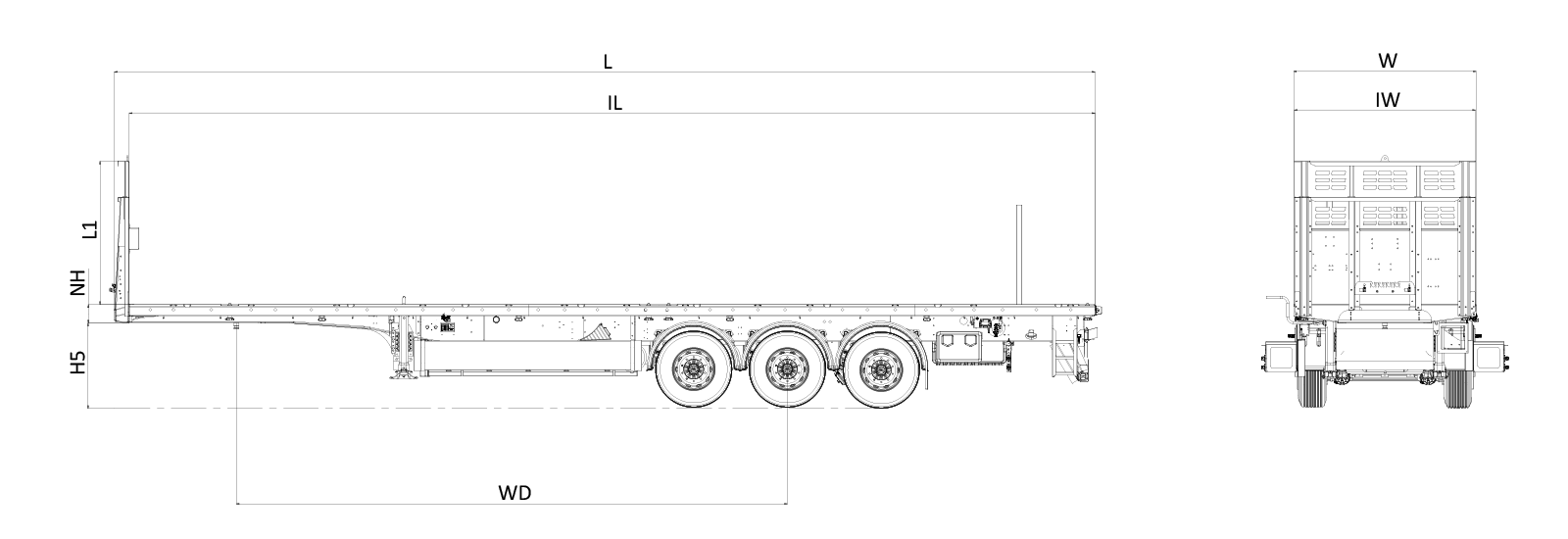

TECHNICAL DATA
- Fifth Wheel Height (H5)1.180 mm
- Gooseneck (NH)260 mm
- Wheelbase (Wb)7.700 mm
- External Length (L)13.705 mm
- Tare Weight ±%36.600 kg
TECHNICAL INFORMATION
- ChassisMade of high quality and high strength S700 MC steel, in compliance with Standard ISO 1726-2 and ISO 1726; made of two welded longitudinal beams in I form with cross beams at needed distances. Reinforced with KTL protection with Kässboh rer expertise (10 years warranty for perforation)
- Brake SystemWabco premium modulator with dual circuit electro-pneumatic ABS/EBS 2S/2M brake system with anti-lock (EBS-E) and tilt control system (RSS), in compliance with Regulation UN ECE R13.
- Tyre Size385/65 R22.5
- AxlesBPW brand disc brakes axle with pneumatic suspension system with 9.000 kg load capacity.
- Electric SystemASPÖCK branded lightning installation which contains 2x7 and 1x15 pin sockets, 24 V in compliance with UN ECE R48 regulation and ADR legislation. The front position lamps and side position lamps are led, and the rear stop lamps are Aspöck Europoint III bulb type.
- Floor30 mm thick and water resistant hardwood and galvanised steel omegas flooring that can support 9.500 kg forklift axle load in compliance with DIN EN 283.
- Container LocksEquipped with 4 x 2 units of container locks suitable for carrying, 2 x 20 ft, 1 x 40 ft container.
- Lashing Rings13 x 2 units of load lashing rings and 34 x 2 units of load lashing points each with 2 tons capacity on the side rave in compliance with standard EN 12640
- Front Panel TypeKTL coated, high strenght 1.500 mm height steel front panel.
- Pillars And Pockets8 x 2 units 83 x 83 mm pillar pockets on side rave
TECHNICAL CAPACITIES
- King Pin Capacity15.000 kg
- Axle Load27.000 kg
- Total Weight42.000 kg
