K.SKS B / 24 - 12 / 27

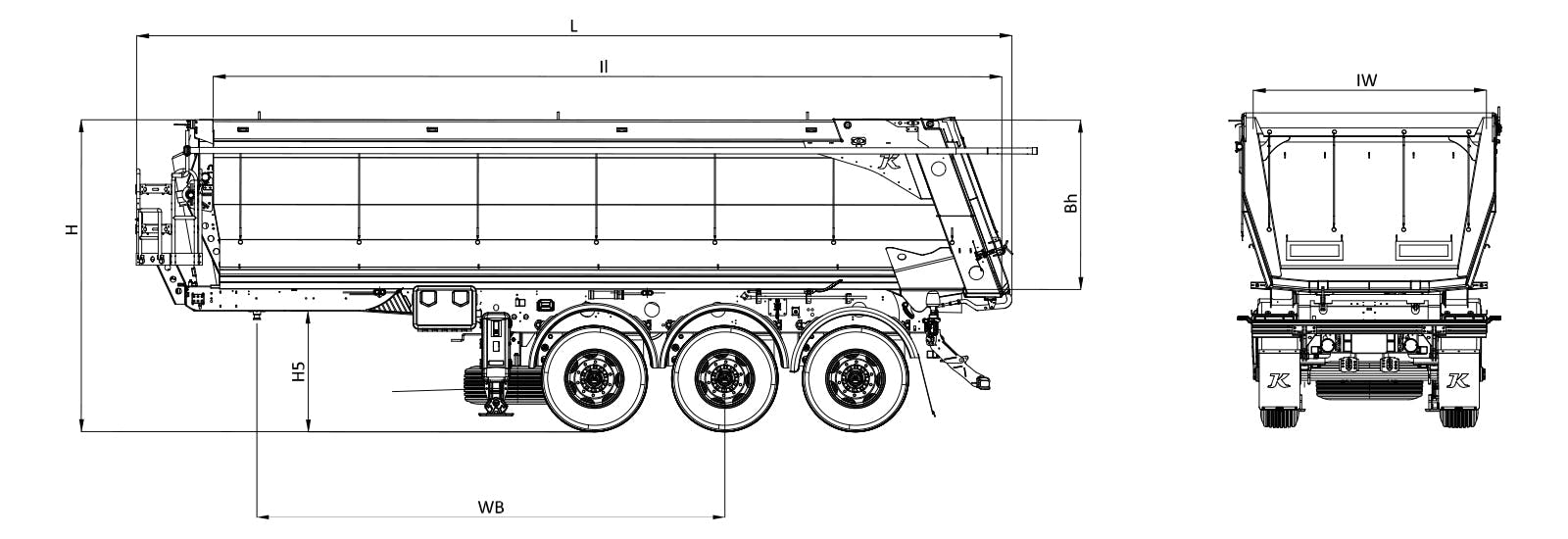

TECNICAL DATA
- Volume24,0 m3
- Tare Weight ±%35.955 kg
- Wheelbase (Wb)4.700 mm
- Fifth Wheel Height (H5)1.220 mm
- Vehicle Height (H)2.980 mm
- Body Length (A )8.300
- Body Inner Height (IH)1.540 mm
- Body Height (Bh)1.550 mm
TECNICAL INFORMATION
- ChassisMade of high quality and high strength S700 MC steel, in compliance with Standard ISO 1726-2 and ISO 1726; made of two welded long itudinal beams in I form with cross beams at needed distances. Reinforced with KTL protection with Kässbohrer expertise.
- Brake SystemDual circuit electro-pneumatic WABCO brand EBS 2S/2M brake system with anti-lock (ABS) and tilt control system (RSS) in compliance with Regulation UN ECE R13
- Electric SystemAspöck Europoint III lightning installation with 24V LED side position lamp and 2 x 7 and 1 x 15 pin sockets, in compliance with Regulation UN ECE R48 and ADR Legislation
- AxlesBPW AL II air suspension and drum brake axle with 9 ton capacity each
- BodyBody is made of Hardox450 and TUF500 materials for maximum abrasiveness and impact resistance.
- Hydraulic SystemHYVA branded 5 stage cylinder that can be lowered/raised with an air handle is included.
TECNICAL CAPACITIES
- Axle Load27.000 kg
- King Pin Capacity12.000 kg
- Total Weight39.000 kg
