KÄSSBOHRER
PENDLE LOW LOADER
PEAK MANEUVERABILITY AND EFFORTLESS
HANDLING ENGINEERED BY KÄSSBOHRER

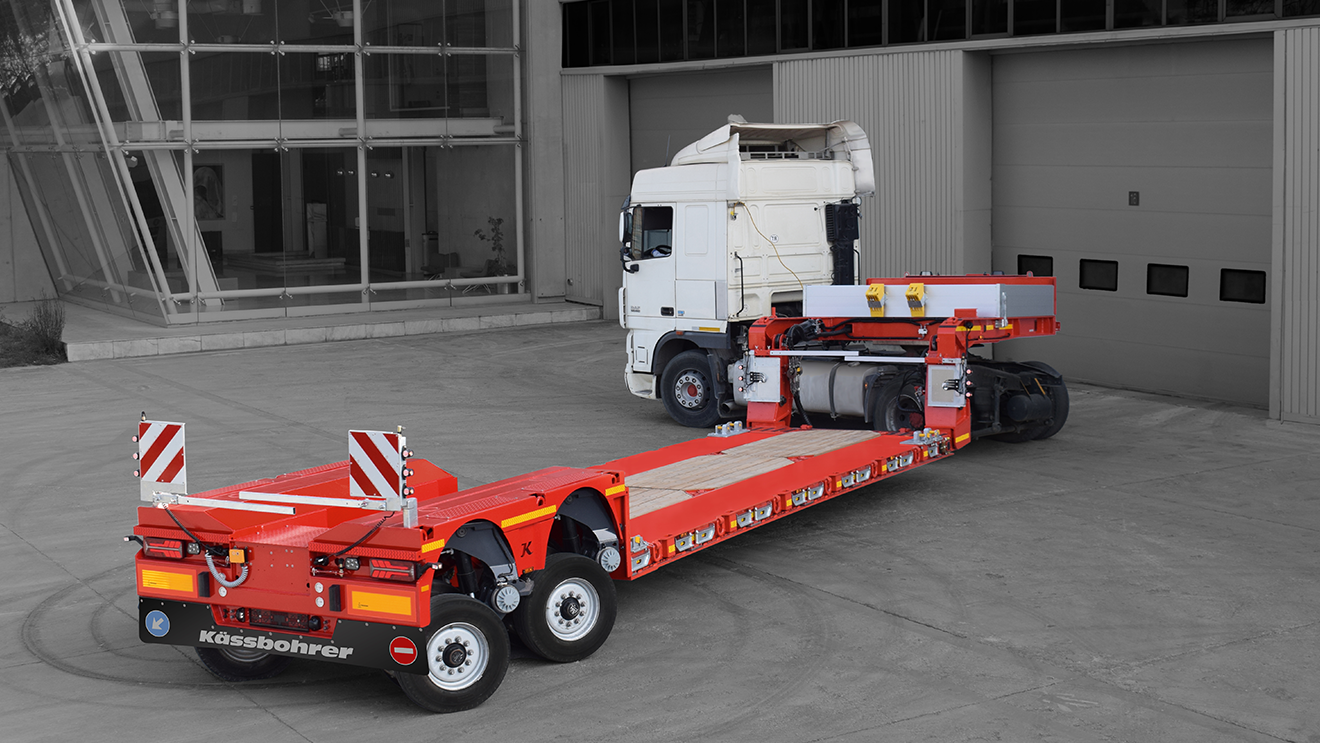

Kässbohrer engineered the Pendle Low Loader, K.SLL.P, with in-house developed independent pendle suspension and progressive hydraulic steering systems, delivering peak maneuverability and effortless handling in heavy-duty transportation.
1.000.000 KM VALIDATED
ROBUST CONSTRUCTION & TOP PERFORMANCE

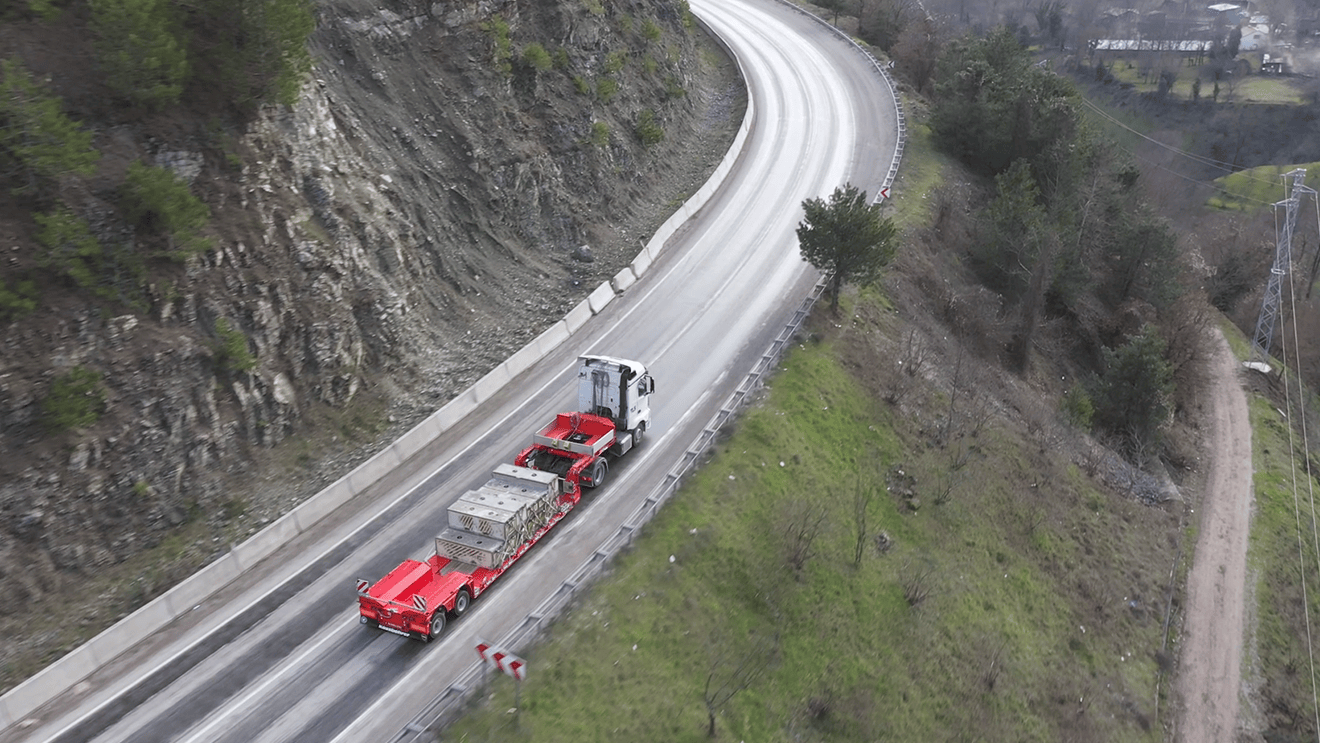

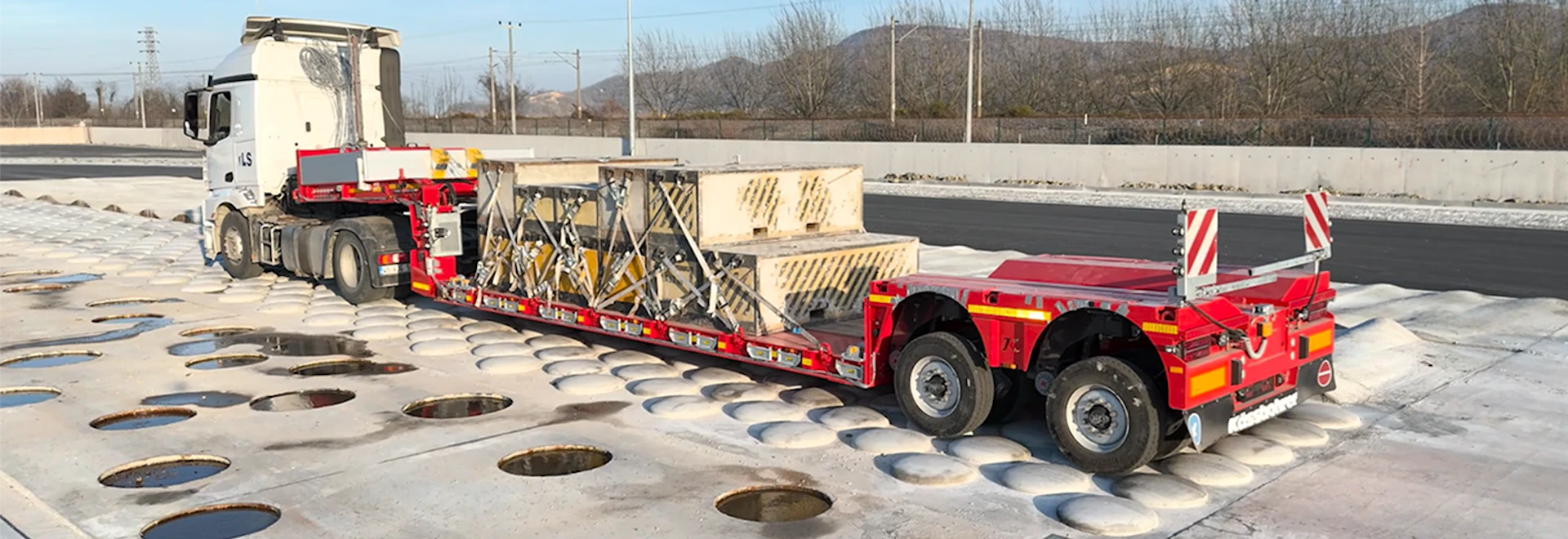

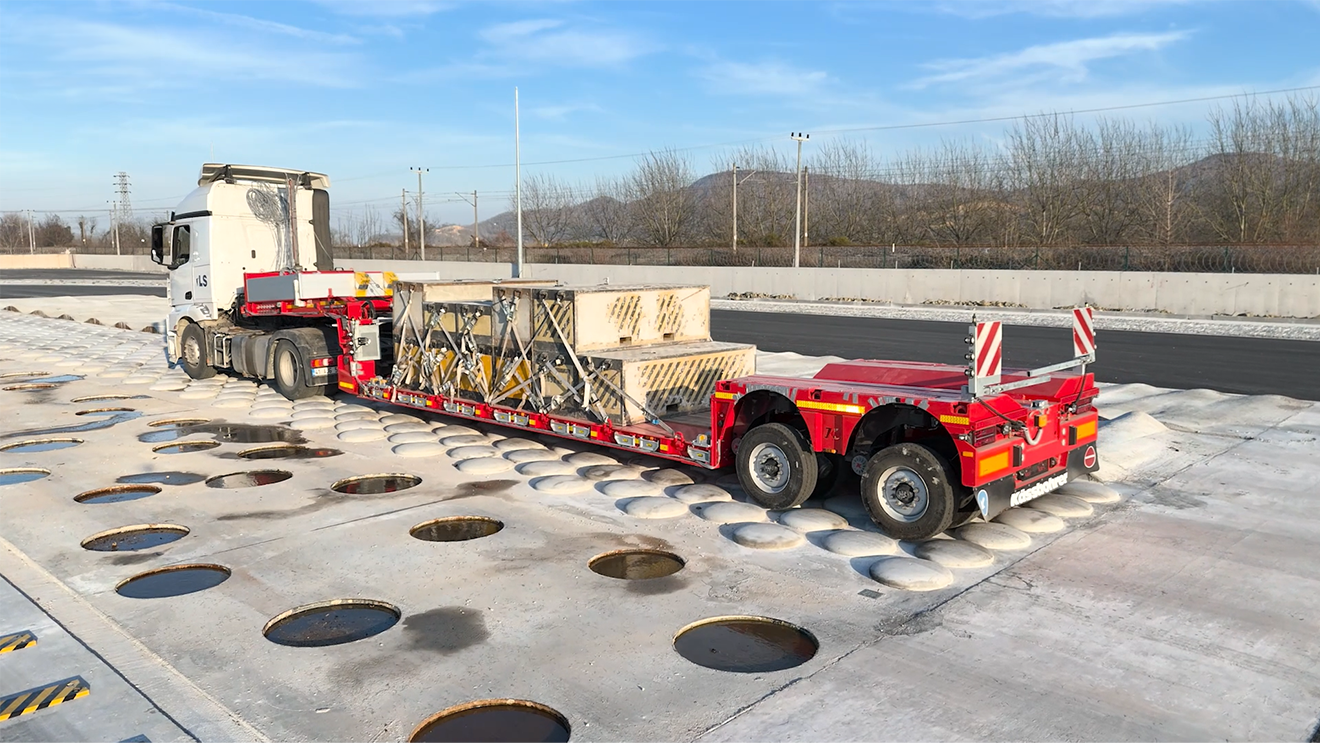

Tested and validated at Europe’s top capability and capacity R&D centers & Europe's first and only trailer OEM-owned outdoor test track, at standardized and extreme road conditions for structural integrity, torsional resistance, durability, load distribution, road stability, functionality and consequent top performance e for a minimum of 1,000,000 km of real-life usage.
PEAK MANEUVERABILITY AND
EFFORTLESS HANDLING ENGINEERED
VALIDATED

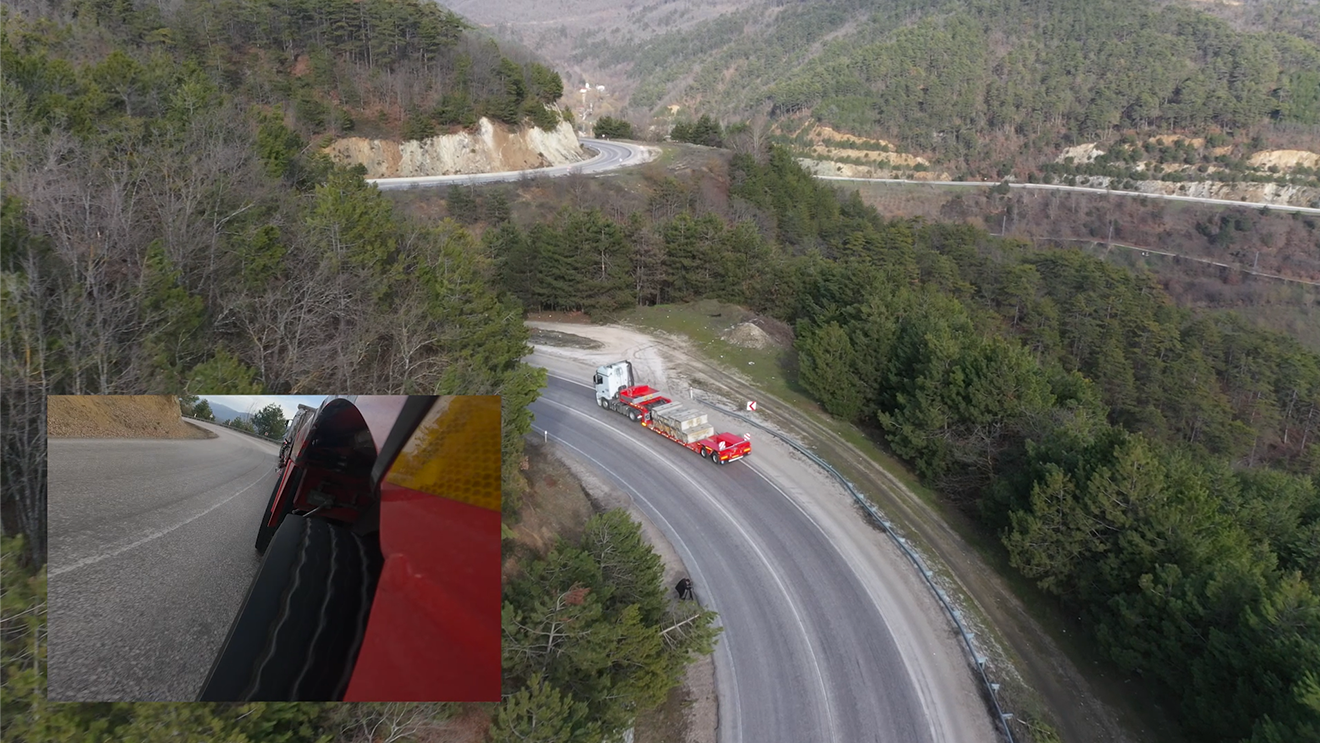

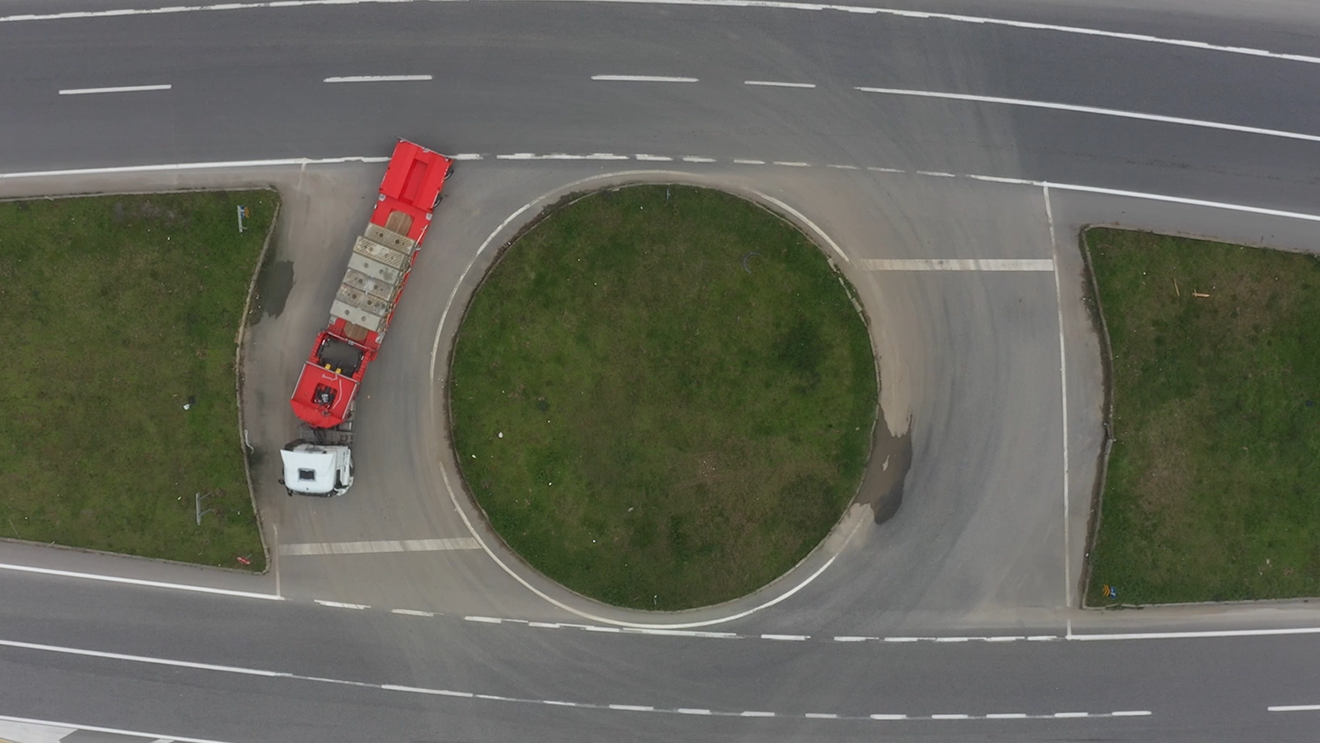

In-house developed independent pendle suspension compliant with Ackermann principles for all degrees from 0 to 60, assuring seamless vehicle alignment and smooth road handling in hardest road consitions including greater than 90 degree curves, confied jobsite conditions, stabilized roads, construction sites, sites along with farmlands.
All possible vehicle lenghts with incremental extensions from 500 mm to 5550 mm approved by TÜV-DEKRA for compliance with Paragrah 70 regulation accomodating varying heavy and abnormal goods.
HIGHEST
SUSPENSION STROKE

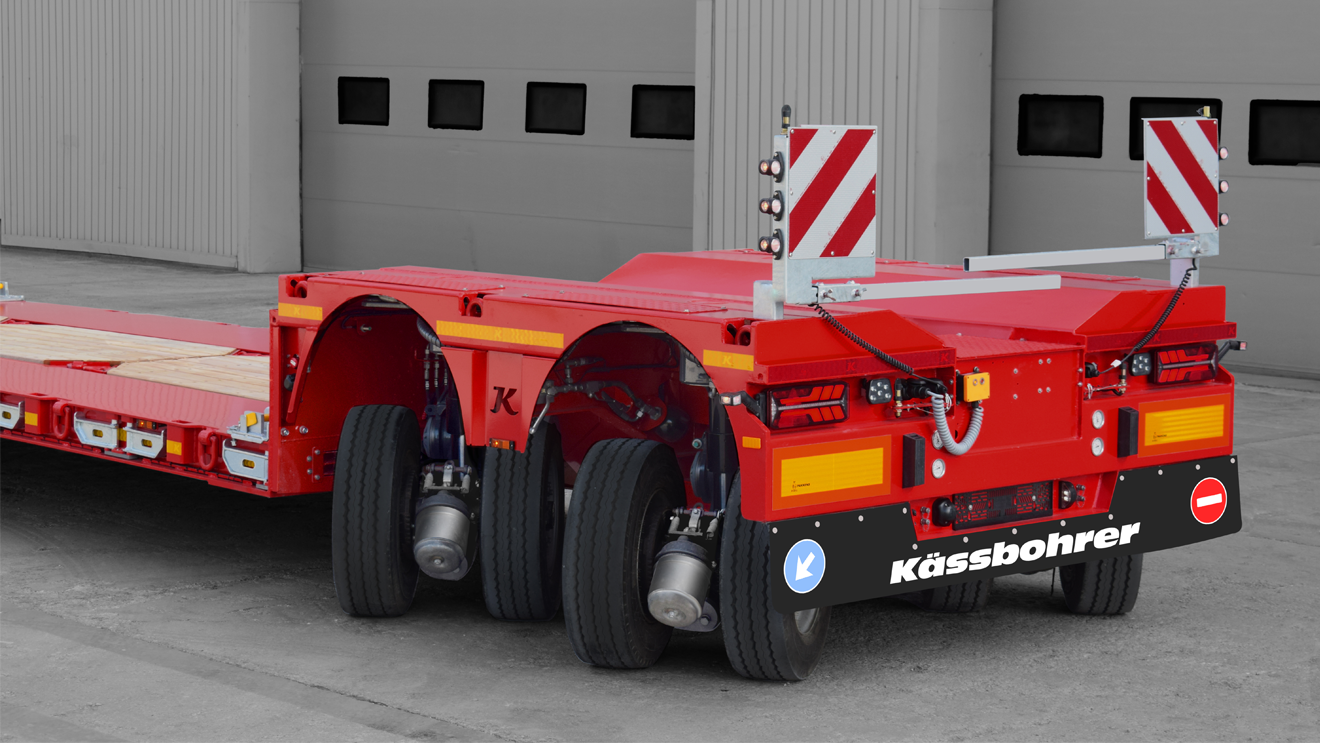

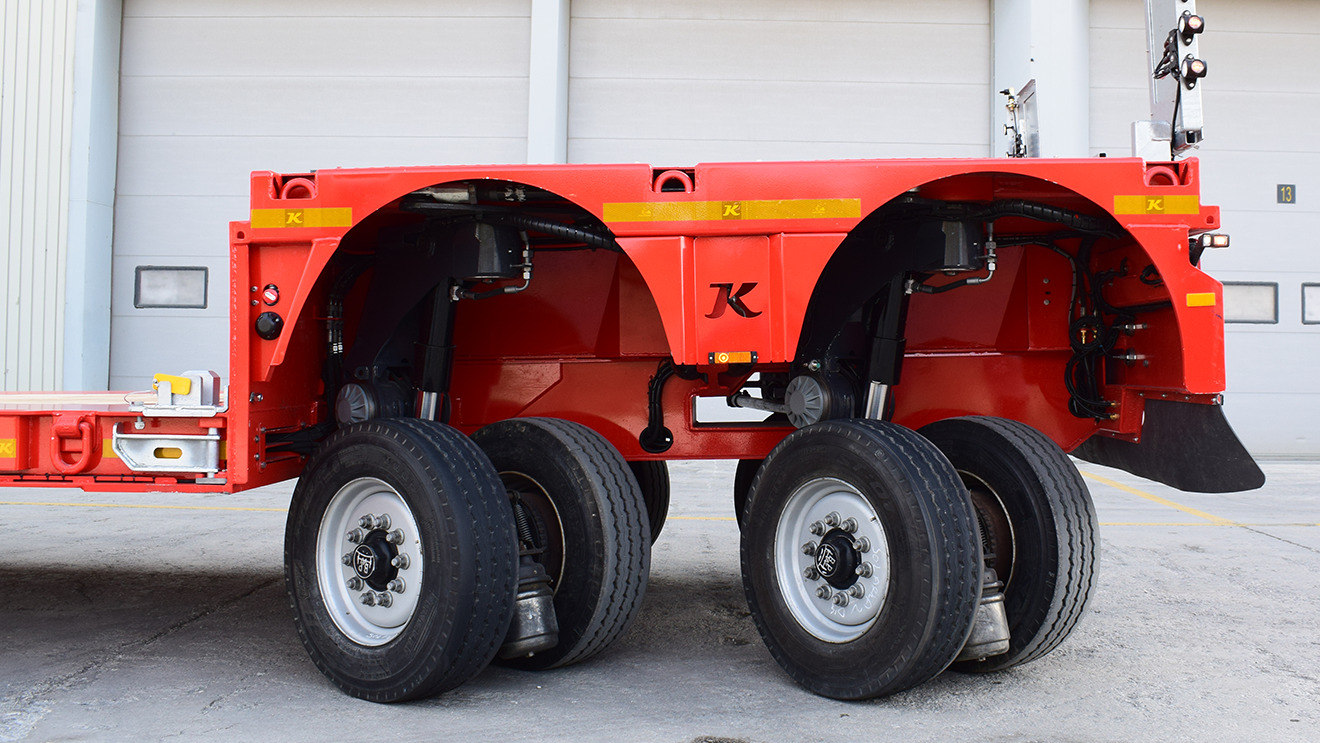

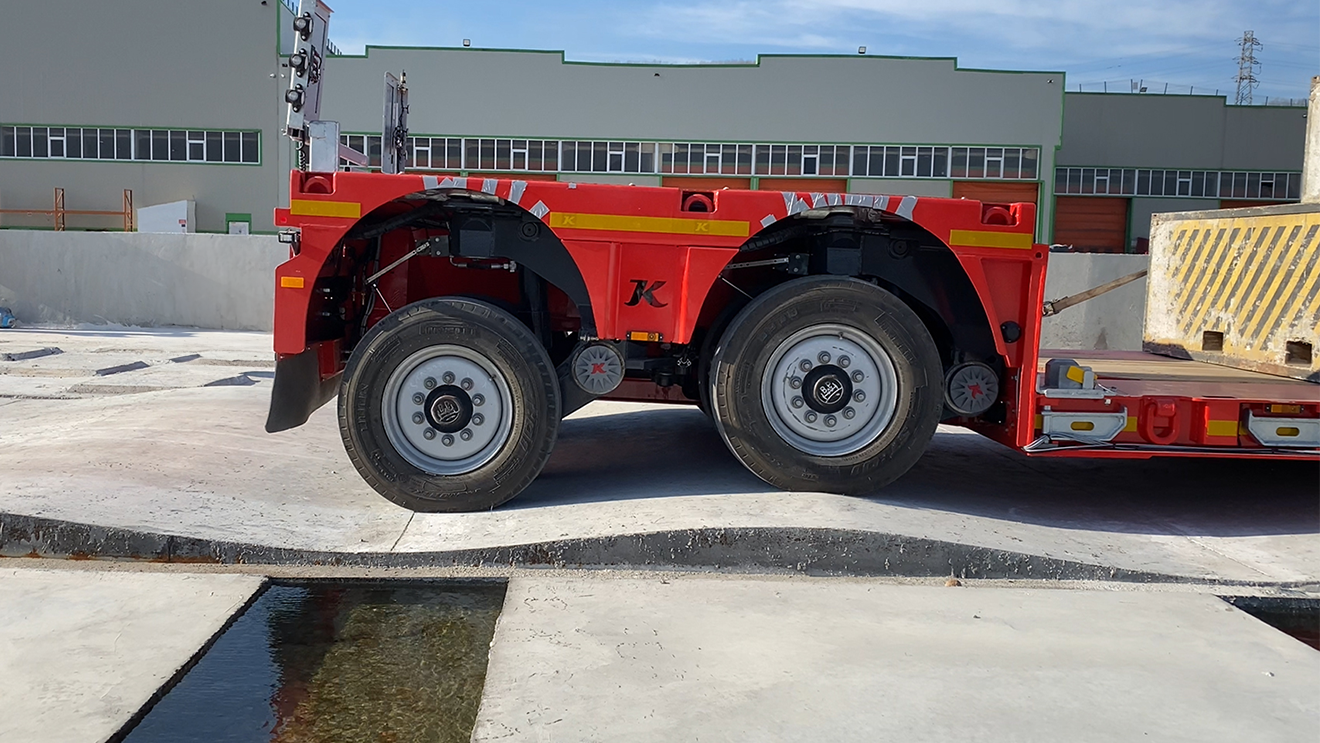

In house developed and approved independent pendle suspension, 600 mm independent suspension stroke
12 TON
LEGAL AXLE CAPACITY
Independent suspension allows users to go up to 12 ton per axle within legal regulations in Germany.
LEADING LOAD
SAFETY FEATURES

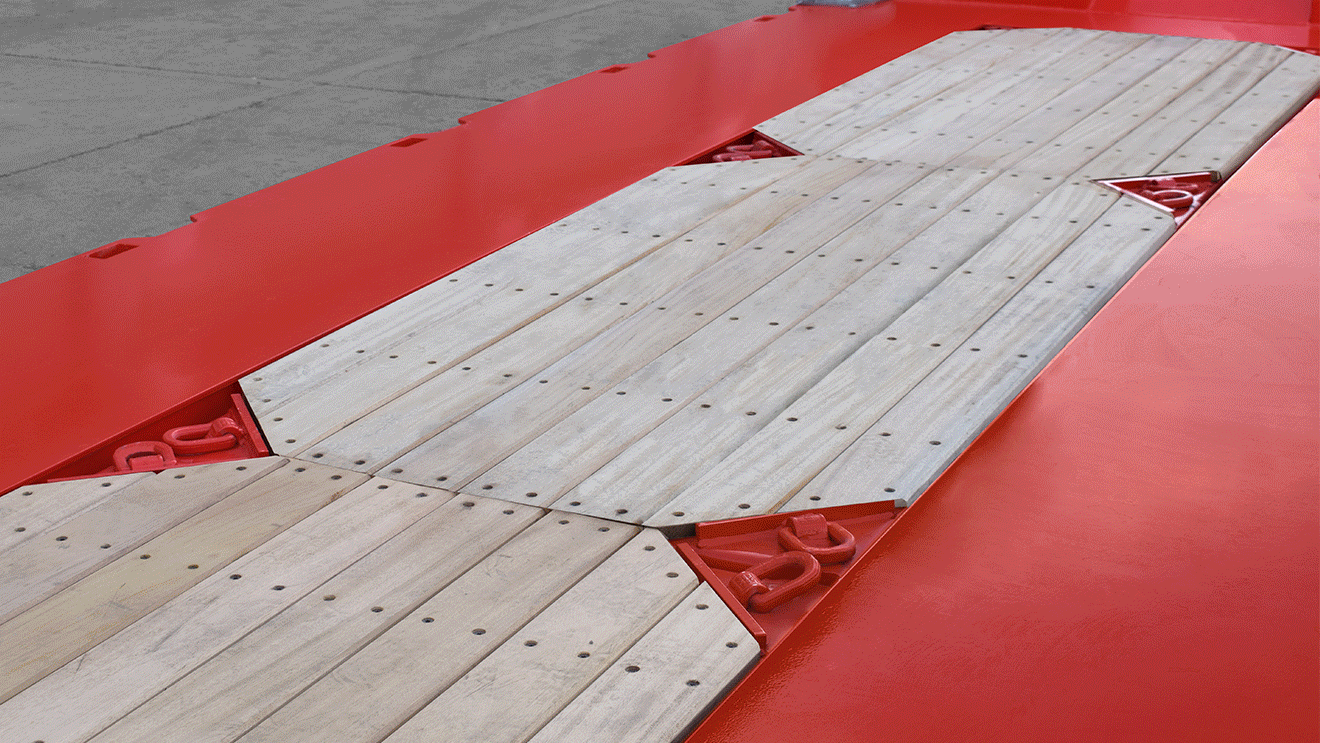

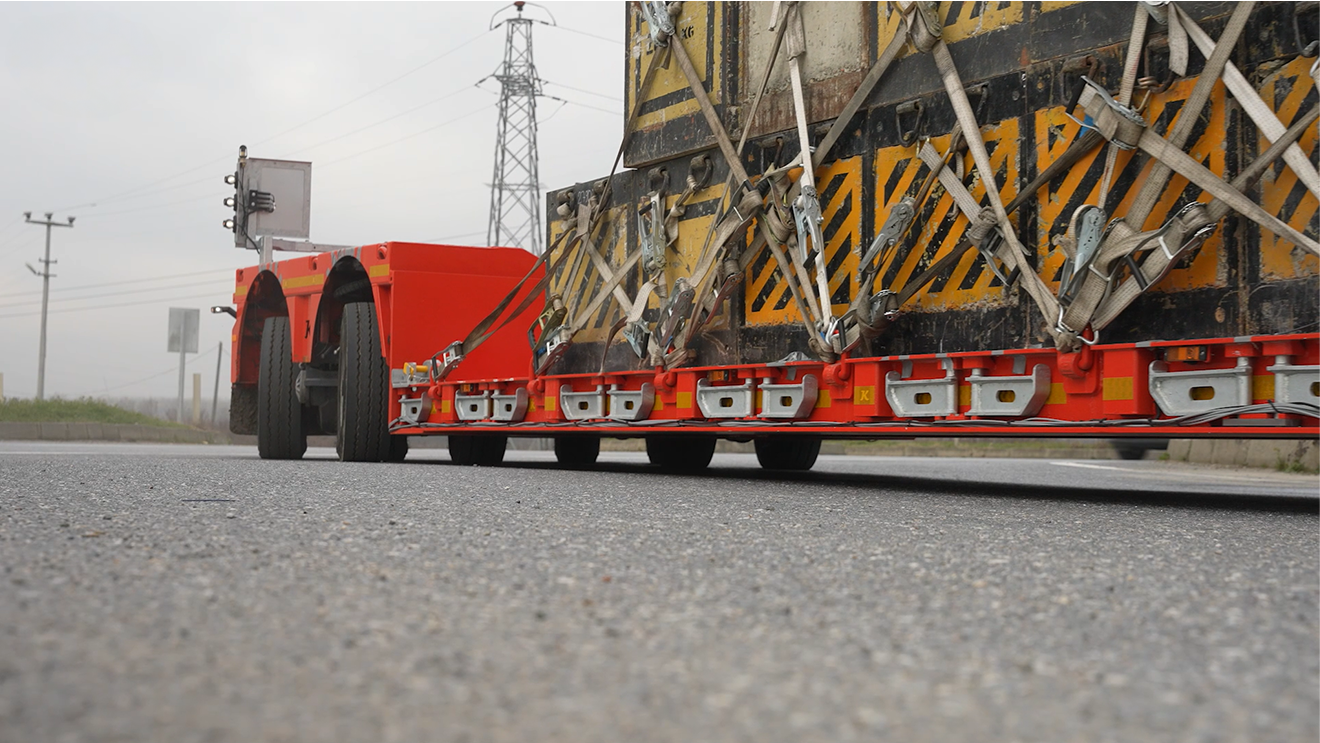

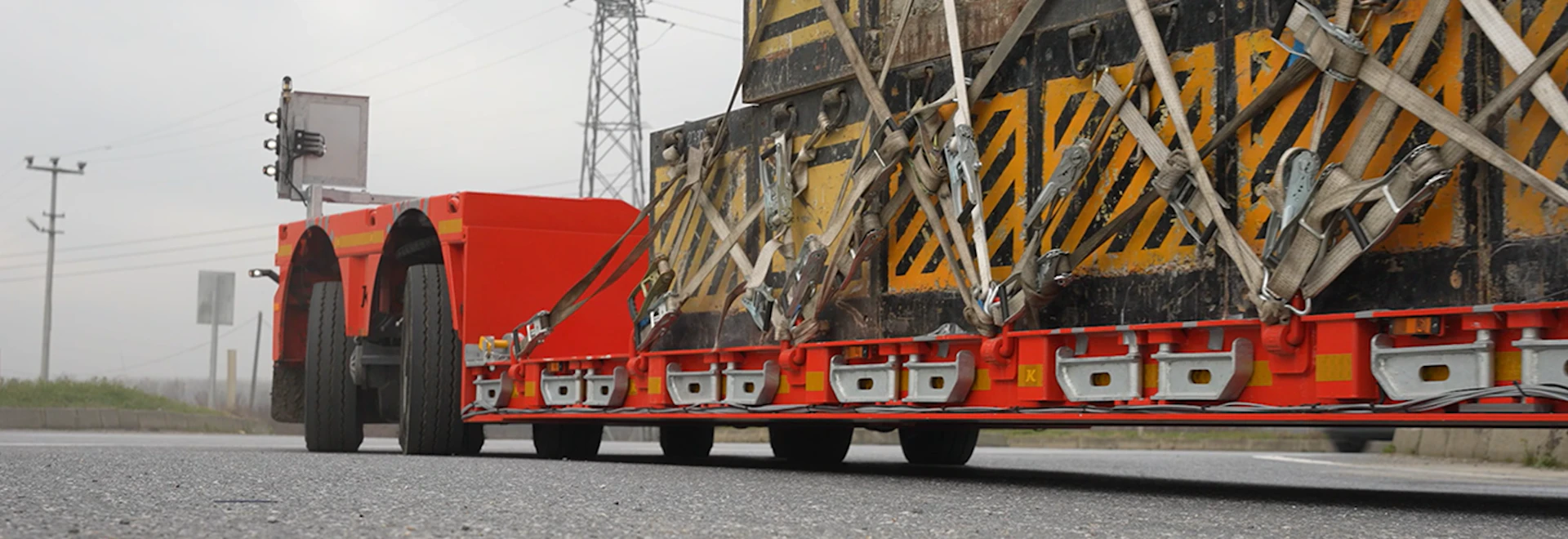

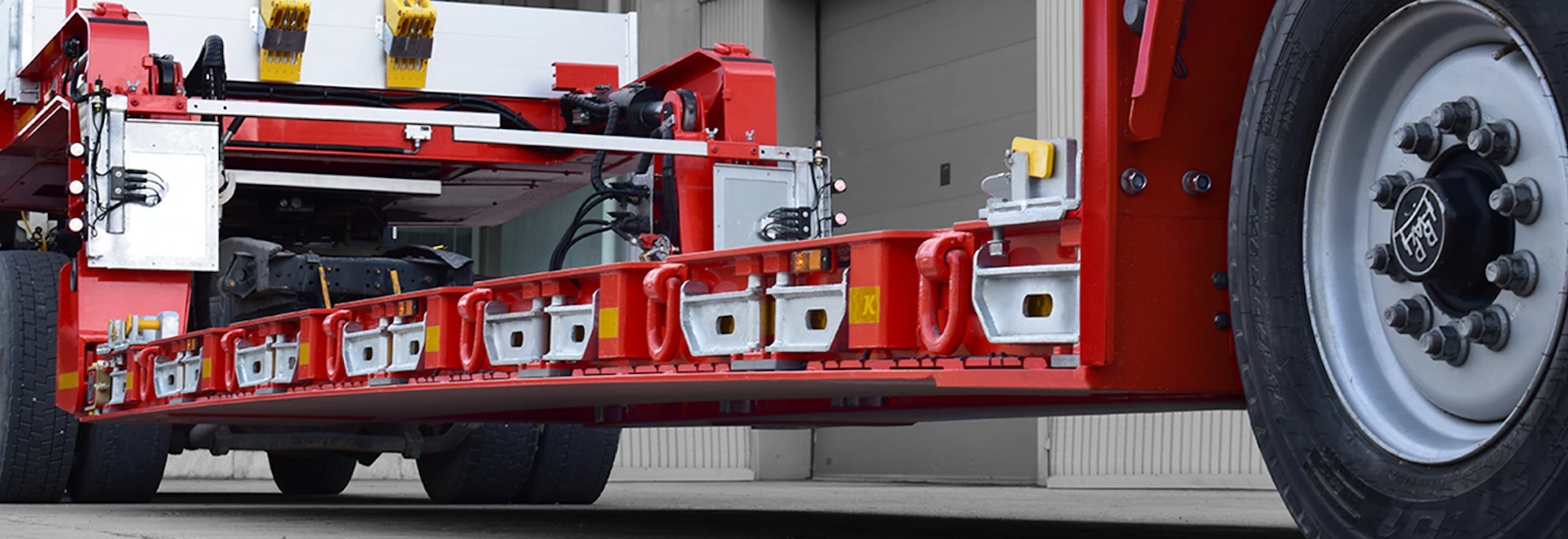

Europe's highest capacity and number of lashing rings, total of 8x2 of 13.4 tons, additional 4x2 8 ton, 3x2 10 ton as standard, optional 6 pairs of 13.4-ton detachable floor-integrated lashing rings. Standard integrated pillar pockets, container lock housings, ensuring top securing for maximized load factor.
LOWEST LOADING
PLATFORM
350 mm loading height offers up to 3.650 mm high load transportation without additional processes.
LOAD FACTOR
MAXIMISATION
Horizontal extension of up to 5,550 mm, lateral extension of up to 2 × 230 mm, enabling stable accomodation of varying loads: construction machinery, farm & industrial silos, steel & varying industrial construction components, and boats.
EASE OF OPERATIONS
FAST AND ERGONOMIC

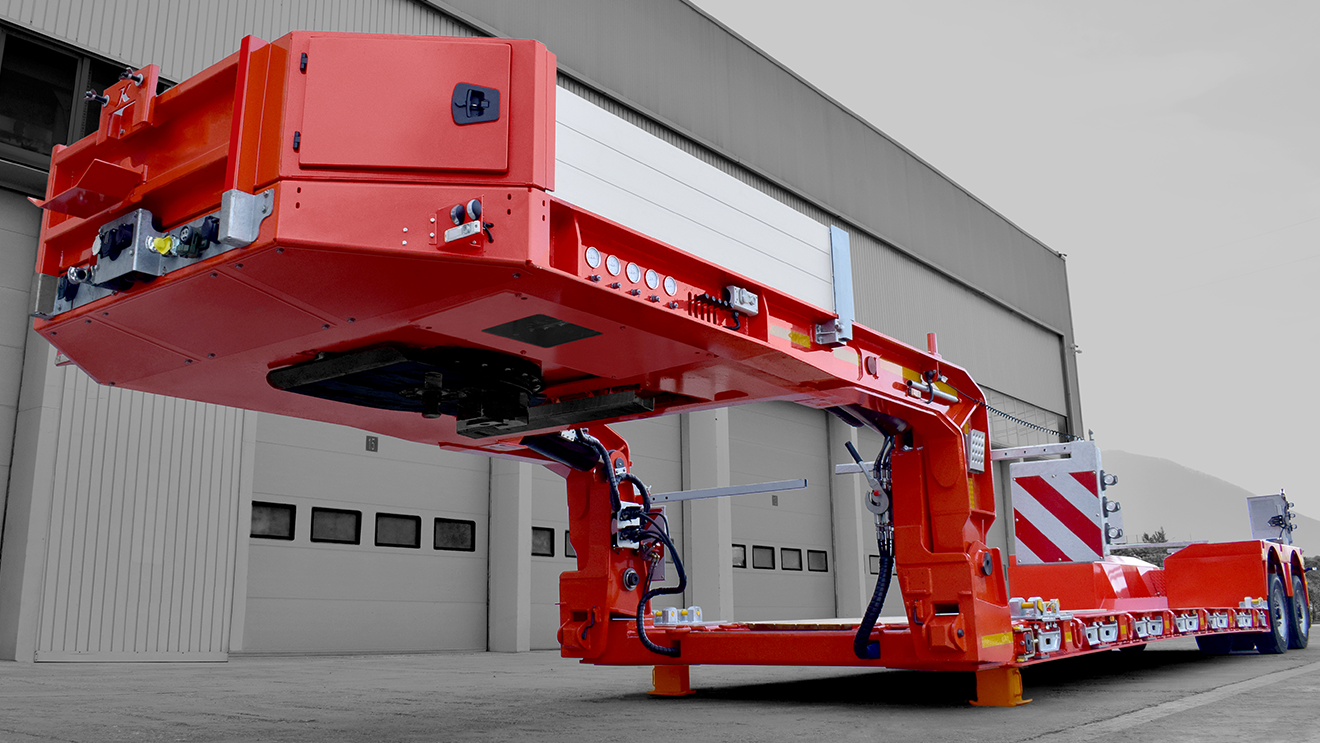

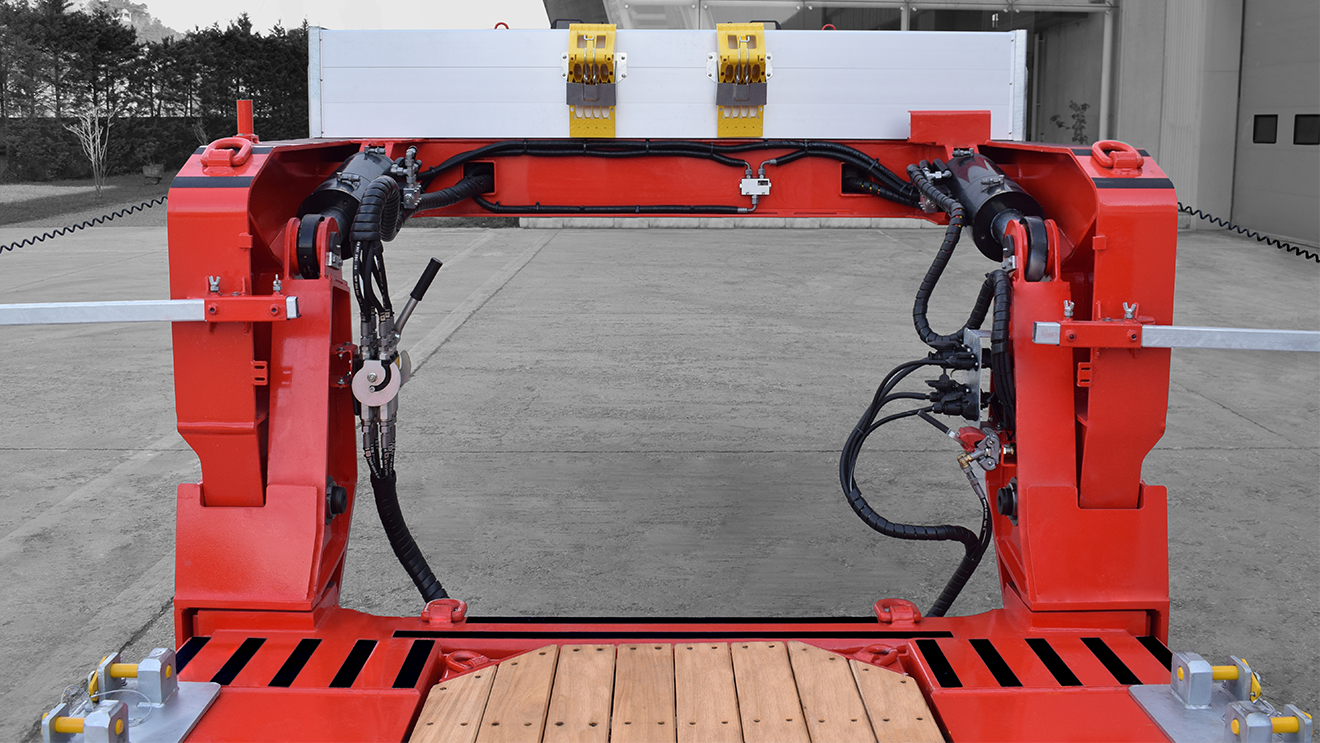

Front side loading with detachable goose neck, detach in less than 50 seconds with the quick electricity, air and hydraulic systems coupling types in standart configuration. Moreover hydraulic gooseneck adjustability for easy alignment of the vehicle after loading point loads.
EUROPE’S CORROSION RESISTANCE
CHAMPION METALLISATION
As the best example of power of engineering, Kässbohrer metallisation is Europe’s champion corosion protection validated by more than 3,800 hours of salt spray testing with no red rust formation. Kässbohrer Pendle Low Loader as well as entire Kässbohrer low-bed and continer chassis range is protected by this top metallisation yielding long vehicle life and value retention. With Pendle Low Loader, Kässbohrer once again demonstrates its competence in developing vehicles with the perfect balance of engineering excellence and ingenuity. Delivering 1,000,000 km validated robust construction and top performance, peak maneuverability and effortless handling, the highest suspension stroke, 12 ton legal axle capacity, leading load safety, maximized load factor, the lowest loading platform, fast and ergonomic operations as well as Europe’s corrosion resistance champion metallisation, Kässbohrer Pendle Low Loader K.SLL P is engineered to take heavy-duty transportation and your business to the next level.
